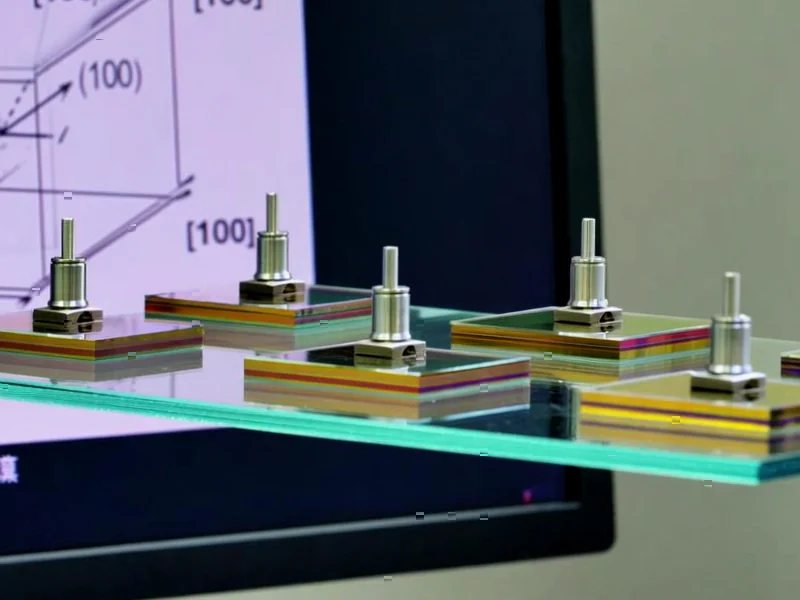

According to Nature, researchers have discovered that copper(I) oxide (Cu2O) photoelectrodes exhibit pronounced anisotropic mobility despite being cubic crystals, with extensive physical measurements on single-crystal Cu2O showing directional dependence of charge transport that cannot be attributed to non-parabolic valence bands. The team systematically ruled out surface effects through comprehensive contact-resistance measurements and eliminated grain-boundary contributions, particularly those affecting out-of-plane transport, through detailed morphological characterizations. They further validated their findings using space-charge-limited current measurements following established best practices, though they acknowledge that exploring all potential variables remains challenging due to the considerable complexity of the system. This research fundamentally challenges conventional understanding of charge transport in supposedly isotropic materials.
Table of Contents
The Anisotropy Paradox in Cubic Materials
What makes this discovery particularly surprising is that copper(I) oxide possesses a cubic crystal structure, which theoretically should exhibit isotropic properties in all directions. The finding that real-world samples, especially thin films, display directional dependence of mobility suggests that extrinsic symmetry-breaking factors play a more significant role than previously appreciated. This isn’t merely an academic curiosity—it strikes at the heart of how we model and predict charge transport in semiconductor materials for energy applications. For decades, materials scientists have operated under the assumption that cubic crystals would behave uniformly across different crystallographic directions, but this research demonstrates that manufacturing processes and sample preparation can introduce directional preferences that dramatically impact performance.
Implications for Solar Fuel Production
The practical implications for solar fuel generation are substantial. Copper(I) oxide has long been considered a promising material for photoelectrochemical water splitting due to its ideal bandgap of approximately 2.0 eV, which matches well with the solar spectrum, and its abundance compared to more expensive alternatives. However, its practical efficiency has consistently underperformed theoretical predictions. This research suggests that anisotropic charge transport may be a significant contributing factor to this performance gap. If charge carriers preferentially move in certain directions within the material, this could create bottlenecks in charge collection and increase recombination losses, ultimately reducing the overall efficiency of solar-to-fuel conversion. Understanding and potentially engineering this anisotropy could unlock substantial performance improvements in photoelectrochemical devices.
Manufacturing and Scale-up Considerations
The transition from single-crystal studies to polycrystalline thin films presents both challenges and opportunities for commercial application. While single-crystal measurements provide fundamental insights, most practical devices utilize thin films due to cost and scalability considerations. The researchers’ successful reproduction of anisotropic effects in polycrystalline films suggests that these directional transport properties persist across manufacturing scales, but controlling them becomes exponentially more complex. Manufacturers will need to develop new characterization techniques to map anisotropic behavior across production batches and potentially adjust deposition parameters to optimize charge transport along preferred directions. This adds another layer of complexity to an already challenging manufacturing process, but could yield significant dividends in device performance if properly managed.
Critical Research Gaps and Future Directions
While the research provides compelling evidence for anisotropic mobility, the authors appropriately acknowledge the limitations of their study. The statement that “a systematic exploration of all potential variables is not feasible” highlights a fundamental challenge in materials science research—the combinatorial explosion of possible factors that could influence material behavior. Future research should focus on developing high-throughput screening methods to systematically vary deposition parameters, annealing conditions, and doping levels while monitoring anisotropic effects. Additionally, the relationship between band structure and anisotropic transport deserves deeper investigation, particularly how defects and impurities might enhance or suppress directional preferences in charge mobility.
Broader Impact on Semiconductor Research
This discovery has implications extending far beyond copper(I) oxide photoelectrodes. If anisotropic charge transport can emerge in supposedly isotropic cubic materials, researchers may need to re-examine fundamental assumptions about other semiconductor systems. The traditional approach of assuming uniform charge transport based on crystal symmetry may be insufficient for predicting real-world device performance. This could particularly impact emerging materials for photovoltaics, photocatalysis, and electronic devices where subtle variations in processing conditions might induce unexpected directional preferences. The field may need to adopt more sophisticated sampling strategies and characterization methods to account for these effects in both fundamental studies and commercial development.
